Description

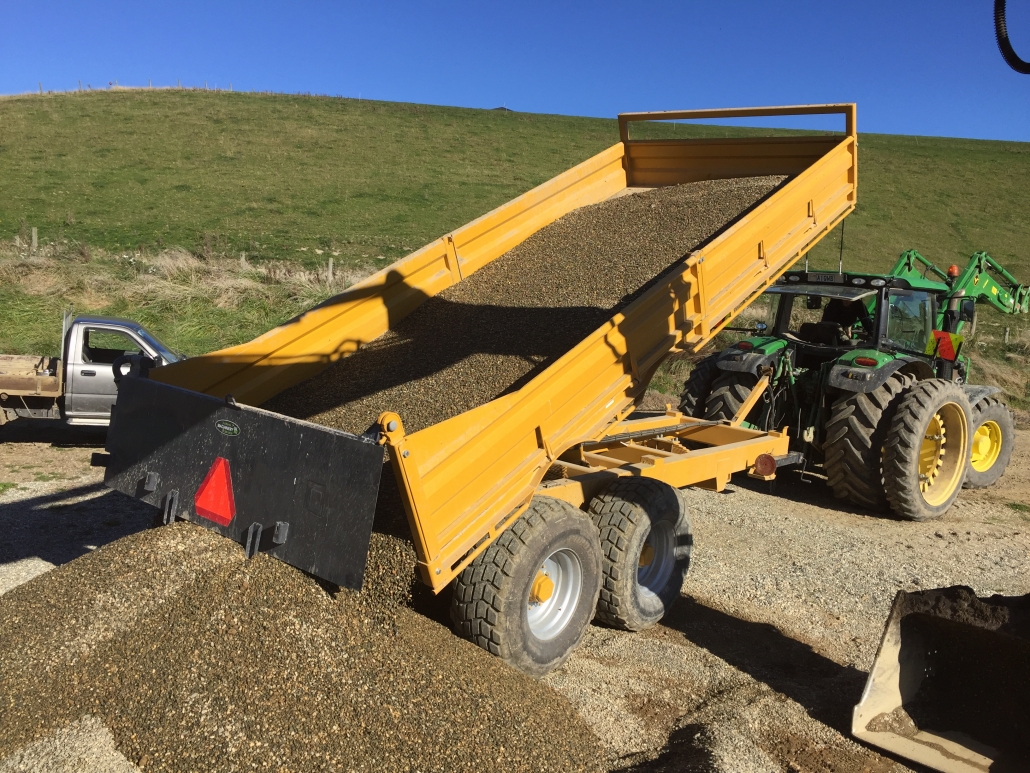

New Farmec 12 tonner – fitted with a special double swing tailgate
Trailer shown is:- Tandem axle, fixed tow eye, rope rails, auto opening tailgate, spreading chains, Corten 4mm deck and 400 radial wheels
Overview
Thank you for considering ‘Farmec’ for your trailer requirements, we are very pleased to be able to offer you our extensive range ‘farmaster’ tip trailers. These trailers are capable of many years of relentless operation. We are pleased that our customers appreciate the features that we added following years of development work with our customers.
What we have aimed to achieve is:-
- A very robust trailer capable of handling all farm operations whilst maintaining the ability to be as diverse as possible
- a functional trailer that exceeds your expectation in the field.
- that the engineering, design and ascetics of the machine prove to give you maximum longevity the price ensures that the unit is competitive whilst considering ‘like for like’
- that the optional equipment ensures all customer requirements are catered for
UNIQUE FEATURES
The Farmaster range of trailers are designed for general farm use, with a fast tipping body that goes to 60° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The 4 piece sides are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes this a very diverse trailer for any operation.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport. The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred. Spreading chains ensuring the right amount of material is spread.
Wheel options are either 385/65 x 22.5 as standard or 500 / 45 x 22.5 as the flotation option which keeps the deck height down.
SPECIFICATION:
BODY TYPE : Flat floor hinged removable sides 4 piece
CAPACITY : 12 tonnes payload
CAPACITIES : 4.6m³ level loaded @ 2,000 kgs/m³
BODY LENGTH : 5,000mm
BODY WIDTH : 2,440mm (8’)
SIDE DEPTH : 525mm (21”)
LOADING HEIGHT : 1,150mm
TIPPING : Via 12 tonne hydraulic Multi stage cylinder
requiring 25 litres of oil to lift to 60° and
terminating at ½” QRC
1st Stage 26.8 tonnes
2nd stage 20.3 tonnes
3rd stage 14.4 tonnes
4th stage 10.4 tonnes
5th stage 7.3 tonnes
WHEELS : 385/65 x 22.5 (18,800kgs @ 40km/hr)
TANDEM AXLE : 90mm / 8 stud braked (16,400kgs @ 40km/hr)
BRAKES : Optional
DRAWBAR : 200 x 100 x 9mm single beam drawbar
CHASSIS : 200 x 100 x 9mm fully welded
TOP CHASSIS : 200 x 100 x 6mm RHS
HEADBOARD : Fixed with RHS top shock rail and extension rail
SIDES : Detachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage. There are 2 removable panels per side
held together with a centre deck staunchen.
TAILGATE : Top hinged tailgate with RHS top shock rail includes independent corner posts to allow rear door to be removed yet sides remain fixed.
TAILGATE LOCKING : Mechanical opening & locking controlled from tip angle
ROPE RAILS : Fitted with 1” bore pipe attached nominally
FLOOR THICKNESS : 4mm Corten braced every 400mm
SIDE THICKNESS : Pressed 3mm with up right bracing
ROAD LIGHTS : Optional
DRAW BAR : Optional spring drawbar
DRAWBAR SUPPORT : Fitted with 80mm jack support
TOW EYE : Swivel 50mm eye as standard
FINISH : Blasted, zinc base primer, 2 x gloss coats
COLOUR : Standard Yellow with door / wheels silver
TRAILER PRICE : $36,510 + GST + delivered
Options :-
500/45 x 22.5 wheels : $4,840 in lieu of 15R
Spring drawbar : $3,420
Road lights : $780
Central lube : $485
Tandem hydraulic brakes : $3,260
Hay extension 1.2m : $2,440
