New Farmec 4 tonner

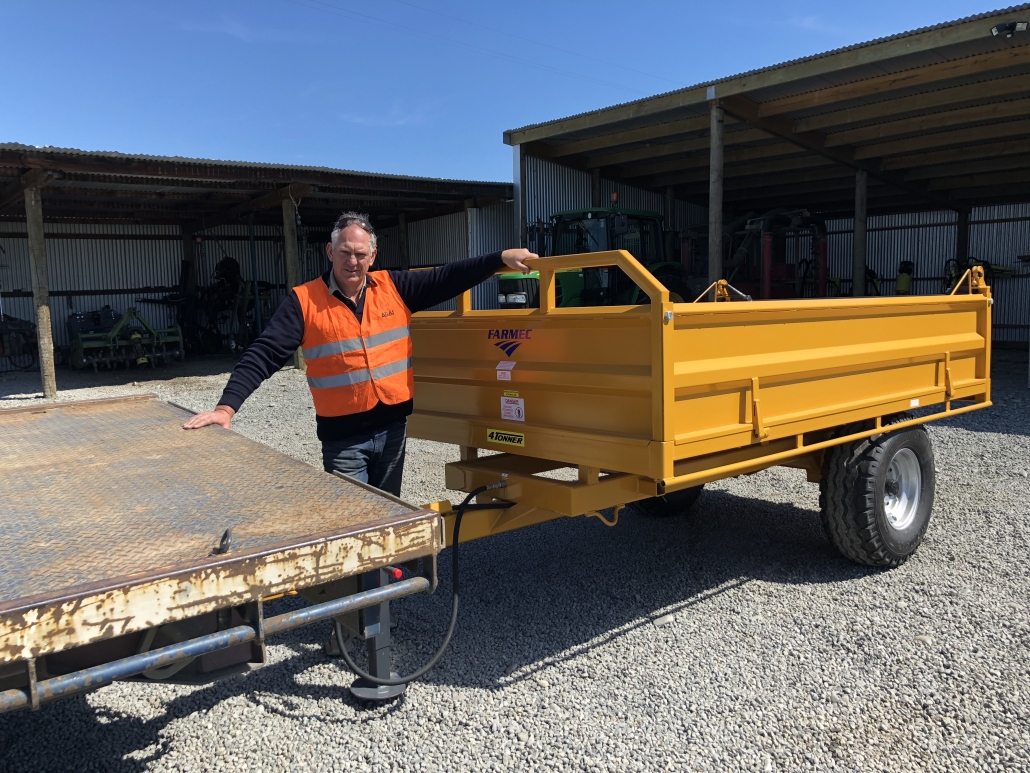

Trailer shown is single axle, fixed tow eye, rope rails, auto opening tailgate, spreading chains, 3mm deck and 11.5 wheels…
UNIQUE FEATURES

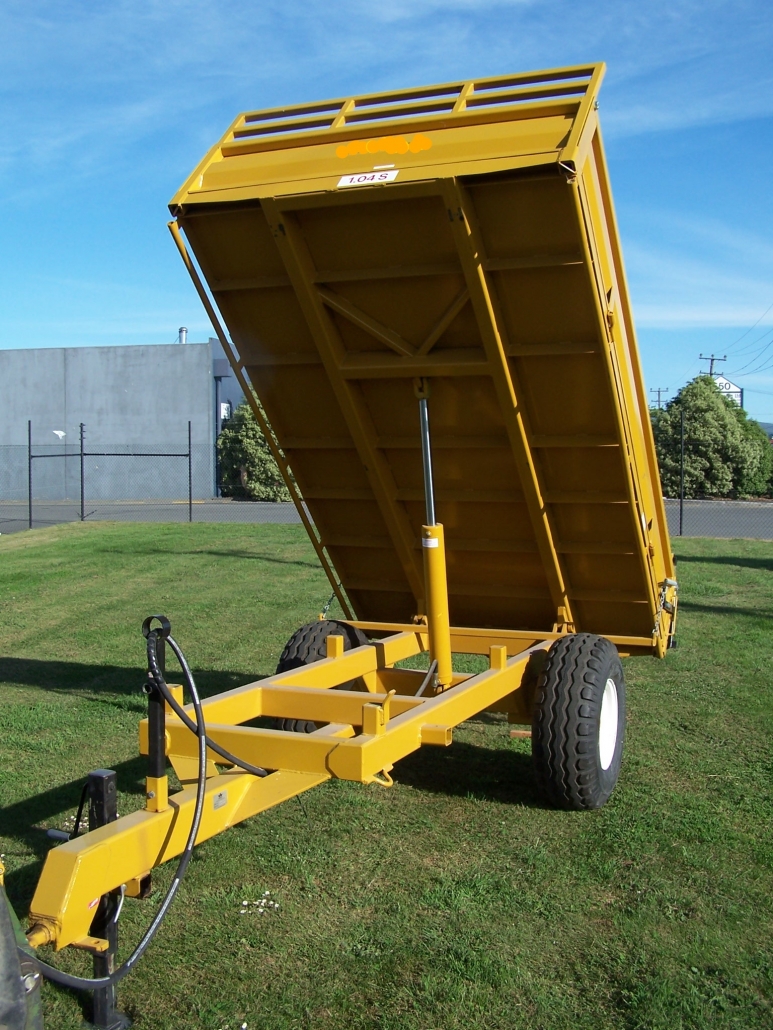

The Farmec range of trailers are designed for general farm use, with a fast tipping body that goes to 60° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The 1-piece sides are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides.
SPECIFICATION:
BODY TYPE : Flat floor with hinged removable sides
CAPACITY : 4 tonnes by design
CAPACITIES : 3m³ level loaded
BODY LENGTH : 3,000mm
BODY WIDTH : 1,820mm
BODY DEPTH : 525mm
RAM TYPE : hydraulic cylinder requiring 8 litres of oil to lift to 60° 1st stage 10.4 tonnes
AXLE : 60mm / 6 stud
WHEELS : 11.5 / 80 x 15.3 – 14 ply wheels
CHASSIS : 150 x 100 x 6mm fully welded chassis
TOP CHASSIS : 125 x 75 x 5 RHS
HEADBOARD : Detachable with RHS top shock rail and extension rail with corner sockets in deck
SIDES : 1 piece detachable hinging side
TAILGATE : Detachable tailgate with RHS top shock rail
TAILGATE LOCKING : Auto lock door with under body door latches
ROPE RAILS : Fitted as standard 1” bore pipe attached every third floor member
FLOOR THICKNESS : 3mm braced every 400mm
SIDE THICKNESS : Pressed 3mm with up right bracing
DRAW BAR : Rigid drawbar
DRAWBAR SUPPORT : Fitted with 80mm jack support
TOW EYE : Fixed 50mm eye
FINISH : Blasted, zinc base primer, 2 x gloss coats
TRAILER PRICE : $11,500 + GST + delivery
OTHER OPTIONS
400 wheels in lieu of 11.5 : $1,950
2 pac paint : $750
Hay extension : $2,440
Road lights : $880
Tandem hydraulic brakes : $2,640
Rear tow bar : $325
Quick Hitch shoe : $850
Hydraulic trip door : $980
Swivel eye : $270
