Description
Farmec 8 tonne

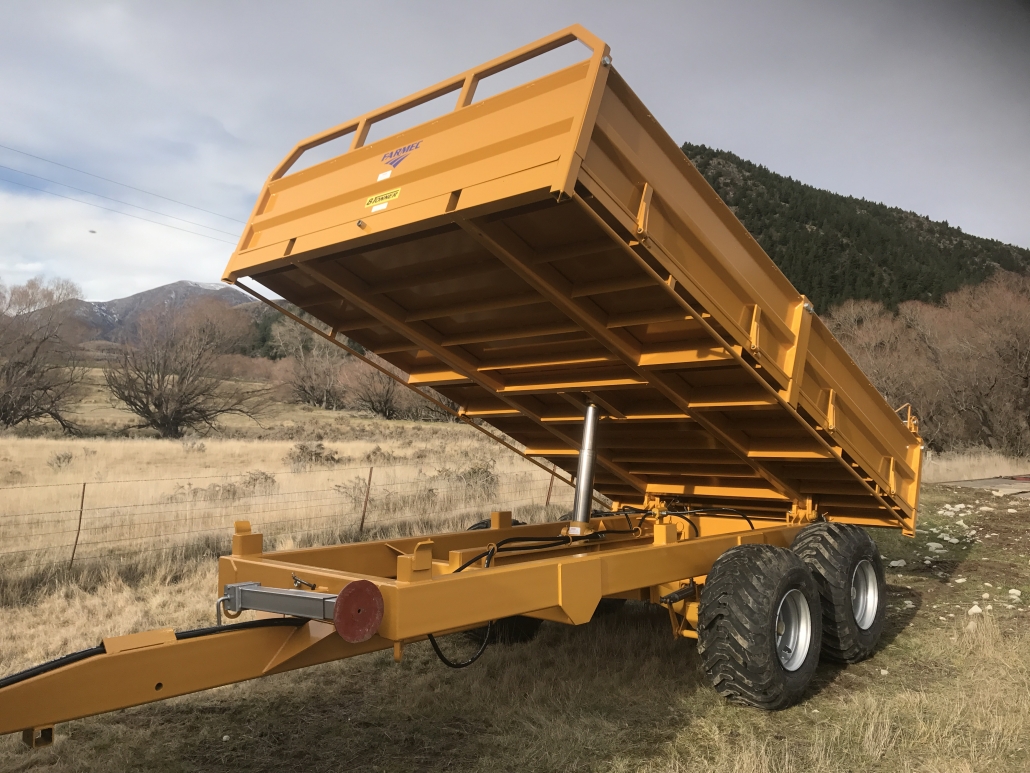

Trailer shown is standard:- Tandem axle, swivel tow eye, rope rails, auto opening tailgate, spreading chains, Corten 4mm deck and traction 400 floatation wheels
Overview
Thank you for considering ‘Farmec’ for your trailer requirements, we are very pleased to be able to offer you our extensive range of tip trailers. These Trailers are capable of many years of relentless operation. We are pleased that our customers appreciate the features that we added following years of development work with our customers.
What we have aimed to achieve is:-
- A robust trailer capable of handling all farm operations whilst maintaining the ability to be as diverse as possible
- a functional trailer that exceeds your expectation in the field.
- that the engineering, design and ascetics of the machine prove to give you maximum longevity
- the price ensures that the unit is competitive whilst considering ‘like for like’
- that the optional equipment ensures all customers requirements are catered for
UNIQUE FEATURES
The Farmec range of trailers are designed for general farm use, with a fast tipping body that goes to 60° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The 4-piece sides are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes this a very diverse trailer for any operation. Many of these are sold with an extension of 1.2m that neatly secures into the top deck m embers, this now gives 5.2m of floor area that allows up to 11 round bales to be loaded.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport. The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred. Spreading chains ensuring the right amount of material is spread.
Wheel options are either 11.5 x 15.3 as standard or 400 / 60 x 15.5 as the flotation option.
SPECIFICATION:
BODY TYPE : Flat floor with 2 x hinged removable sides
CAPACITY : 8 tonnes by design
CAPACITIES : 4.1m³ level loaded @ 2,000 kgs/m³
BODY LENGTH : 4,000mm (13’2”)
BODY WIDTH : 2,440mm (8’)
BODY DEPTH : 525mm
LOADING HEIGHT : 970mm tandem
RAM TYPE : Via under body hydraulic multi stage cylinder 170-04-08 requiring11 litres of oil to lift to 60° and terminating at ½’’ QRC giving the following lift at 160 bar:-
1st stage 14.4 tonnes
2nd stage 10.4 tonnes
3rd stage 7.3 tonnes
4th stage 4.8 tonnes
TANDEM : 70mm / 6 stud brakeless (9,400kgs @ 40k)
WHEELS : 400 / 60 x 15.5 – 14 ply floatation wheel
CHASSIS : 200 x 100 x 6mm fully welded chassis
TOP CHASSIS : 125 x 75 x 6 RHS
HEADBOARD : Detachable with RHS top shock rail and extension rail with corner sockets in deck
SIDES : 4 piece detachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage.
TAILGATE : Detachable tailgate with RHS top shock rail, includes independent corner posts to allow rear door to be removed yet sides remain fixed. Door hinge is 100mm higher and 100mm forward of central balance point
TAILGATE LOCKING : Auto lock door with under body door latches
ROPE RAILS : Fitted as standard 1” bore pipe attached every third floor member
FLOOR THICKNESS : 4mm corten braced every 400mm
SIDE THICKNESS : Pressed 3mm with up right bracing
ROAD LIGHTS : Optional
DRAW BAR : Rigid drawbar
DRAWBAR SUPPORT : Fitted with 80mm jack support
TOW EYE : Swivel 43mm eye (see options)
FINISH : Blasted, zinc base primer, 2 x gloss coats
COLOUR : Standard Yellow
Base trailer price : $19,950
4mm floor in lieu of 3mm : $290
400 wheels in lieu of 11.5 : $1,550
Swivel eye : $260
Auto open tailgate : $150
Trailer as we sell them : $22,250 + GST ex works
OTHER OPTIONS
Hay extension 1.200mm : $2,440
Road lights : $680
Tandem hydraulic brakes : $2,940
Rear tow bar : $325
Quick Hitch shoe : $650
Hydraulic trip door : $980
Double swing tailgate : $1,350
