Description

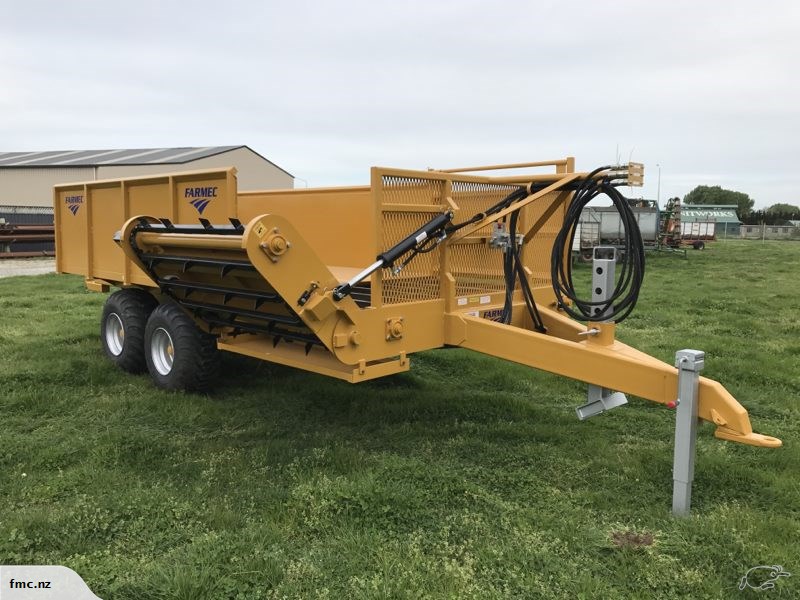

In Stock for immediate delivery – Feeds all round and square bales to 7 foot long it is fitted with a side opening door for feeding out beet. Has a hydraulic ram fitted to the folding elevator so very versatile for all types of feed. This is the 4 Bale Hi-cube model with extended sides to 900mm which adds a further $2,500 – delivery time is 6 weeks so plan ahead
4 bale – $52,200 + GST
5 bale – $55,400 + GST
6 bale – $57,600 + GST
For $41,956 + GST we can build you a cheaper model for bales only with no sides just pipe rails and no hyd elevator – see pics
Hydraulic requirements for standard feeders:- Tease elevator & floor chains = 1 x double remote
Shuttle pusher = 1 x double remote Hydraulic tilting elevator = 1 x double remote
The following information is specific to the 4 Bale Model:-
BODY TYPE: Steel flat floor with sides
FEED OUT: Via the direct driven elevator feeding to the off side. Bi-directional feed
ELEVATOR CONTROL: Hydraulic variable angle to 60 degrees
CAPACITIES 4’ ROUND BALES: 4 up to 6’ diameter
4’ x 3’ SQUARE BALES : 4 at 7’ long (as a single layer)
KGS CAPACITY: 6,000kgs
BODY LENGTH : 3,600mm + 1.4m
OVERAL LENGTH : 7,820mm
BODY WIDTH ID : 2,100mm
OVERAL WIDTH : 2,440mm at widest point
SIDE DEPTH : 600mm (or as option 900mm)
AXLE TANDEM : 70mm / 6 stud brakeless
WHEELS TANDEM : 400 x 15.5 wheels
SUSPENSION : Tandem walking balance beam
CHASSIS :200 x 100 x 6mm fully welded chassis
HEADBOARD : Fixed headboard with 3mm agrimesh
BODY : Sheet steel 3mm floor and sides
DRAW BAR: Rigid drawbar 1,450mm fitted with 80mm jack support
TOWING EYE : Fixed eye as standard or optional swivel eye $250
LOADING FOOT : This optional drop down foot is ideal to rest the unit on
when loading, it digs into the ground assisting when rear loading, used in conjunction with a quick hitch
FINISH : Blasted, etch base zinc high build primer then dried.
Followed by 2 x gloss coats of gloss paint
COLOUR : CAT yellow
