Description

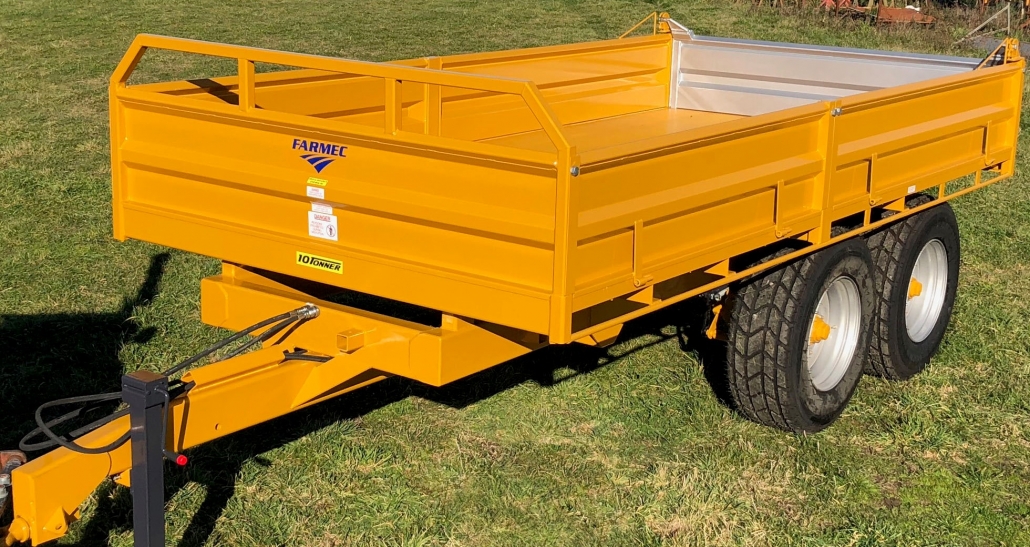

Trailer shown is:- Tandem axle, fixed tow eye, rope rails, auto opening tailgate, spreading chains, Corten 4mm deck and 400 radial wheels
What we have aimed to achieve is:-
- A robust trailer capable of handling all farm operations whilst maintaining the ability to be as diverse as possible
- a functional trailer that exceeds your expectation in the field.
- that the engineering, design and ascetics of the machine prove to give you maximum longevity
- the price ensures that the unit is competitive whilst considering ‘like for like’
- that the optional equipment ensures all customers requirements are catered for
UNIQUE FEATURES
The Farmaster range of trailers are designed for general farm use, with a fast tipping body that goes to 60° will ensure even sticky loads will tip. Full RHS chassis with single drawbar member gives high strength and maximum turning circle. The 4 piece sides are hinged and easily removable with a tailgate that lifts off its hinges allowing the trailer to be used without the rear door, as there are corner sockets in the deck that locate the tailgate posts for securing the sides. This makes this a very diverse trailer for any operation. Many of these are sold with an extension of 1.2m that neatly secures into the top deck members, this now gives 6m of floor area that allows up to 14 round bales to be loaded.
A particular feature is that the headboard can lift out of its location sockets. Bolsters can then be fitted to the 4 corner sockets making the flatbed ideal for pole transport. The mechanical auto opening door opens as the trailer tips, or this can be hydraulic if preferred. Spreading chains ensuring the right amount of material is spread.
Wheel options are either 385/65 x 22.5 as standard or 400 / 45 x 18 as the flotation option which keeps the deck height down.
SPECIFICATION:
BODY TYPE : Flat floor with hinged removable sides
CAPACITY : 10 tonnes by design
CAPACITIES : 6m³ level loaded @ 2,000 kgs/m³
BODY LENGTH : 4,800mm
BODY WIDTH : 2,440mm
BODY DEPTH : 525mm
LOADING HEIGHT : 1,170mm tandem depending on wheels
RAM TYPE : Via under body hydraulic multi stage cylinder requiring 16 litres of oil lift to 60° and terminating at ½’’ QRC giving the following lift at 160 bar:-
1st stage – 18.8 tonnes
2nd stage – 14.4 tonnes
3rd stage – 10.4 tonnes
4th stage – 7.3 tonnes
5th stage – 4.8 tonne
TANDEM : 80mm / 8 stud brakeless (16,400kgs)
WHEELS : 385/65 x 22.5 as standard wheel
CHASSIS : 200 x 100 x 6mm fully welded chassis
TOP CHASSIS : 152 x 75 x 6 RHS
HEADBOARD : Detachable with RHS top shock rail and extension rail with corner sockets in deck
SIDES : 4-piece detachable hinging sides that bolt in rigid, allowing easy access to side loading, RHS top shock rail to prevent damage.
TAILGATE : Detachable tailgate with RHS top shock rail, includes independent corner posts to all rear door to be removed yet sides remain fixed. Door hinge is 100mm higher and 100mm forward of central balance point
TAILGATE LOCKING : Auto lock door with under body door latches
ROPE RAILS : Fitted as standard 1” bore pipe attached every third floor member
FLOOR THICKNESS : 4mm corten non rust steel floor braced
SIDE THICKNESS : Pressed 3mm with up right bracing
ROAD LIGHTS : Optional
DRAW BAR : Rigid drawbar 200 x 100 x 9mm
DRAWBAR SUPPORT : Fitted with 80mm jack support
TOW EYE : Fixed 50mm eye (see options)
FINISH : Blasted, zinc base primer, 2 x gloss coats
COLOUR : Standard Yellow
TRAILER PRICE : $28,550 + GST ex works
OTHER OPTIONS
Hay extension 1.2m : $2,440
500 wheels in lieu of 385 : $2,640
Road lights : $780
Tandem hydraulic brakes : $2,940
Rear tow bar : $325
Quick Hitch shoe : $850
Hydraulic trip door : $980
Swivel eye : $285
